DIY Supplies:
Electrical
Record Length:
1M
Max Waveform Capture Rate:
30,000wfm/s
Digital Channels:
1
Band Width:
Less than 60MHz
IS Battery Demountable:
No
Display Size:
2.9 Inches & Under
Model Number:
HM11803
Brand Name:
Hantek
Display resolution:
800*600 Pixels
Real Time Sampling Rate:
96
Fit for:
the portable computers, table PC,wild mobile use,business trip use
Operating system:
Support Windows NT/Windows2000/XP/WIN10/ WIN8/WIN7
Feature1:
USB 2.0 interface plug and play, and no need extra power supply.
Feature2:
More than 20 kinds of automatic measurement function
Feature3:
PASS/FAIL Check function. Resourceful trigger function
Feature4:
dynamic cursor tracking, waveform record and replay function
Feature5:
Good mechanical design with small size which is easy for carrying.
Feature6:
The outer case is made by Anodised aluminium.
Feature7:
The hardness of aluminium alloy surface is greatly improved.
Feature8:
4 isolated channels oscilloscope,1GSa/s real time sampling rate,
Feature9:
2mV-10V/DIV high input sensitivity,large input range, 70MHz bandwidth
Feature0:
The waveform data could be output to EXCEL,BMP,JPG.
Feature11:
Waveform averaging, afterglow, lightness control, reverse
Feature12:
add, subtract, multiply, divide, X-Y display.
Feature13:
FFT spectrum analyzer.
Feature14:
1 computer can connect with multiple oscilloscopes
Feature15:
Provide secondary development library DLL
Feature16:
Provide Labview\VB\VC\QT developing examples.
Note:
Support Wholesale and Drop Shipping.
 | |||
 |  |  |  |
 |  |  |  |

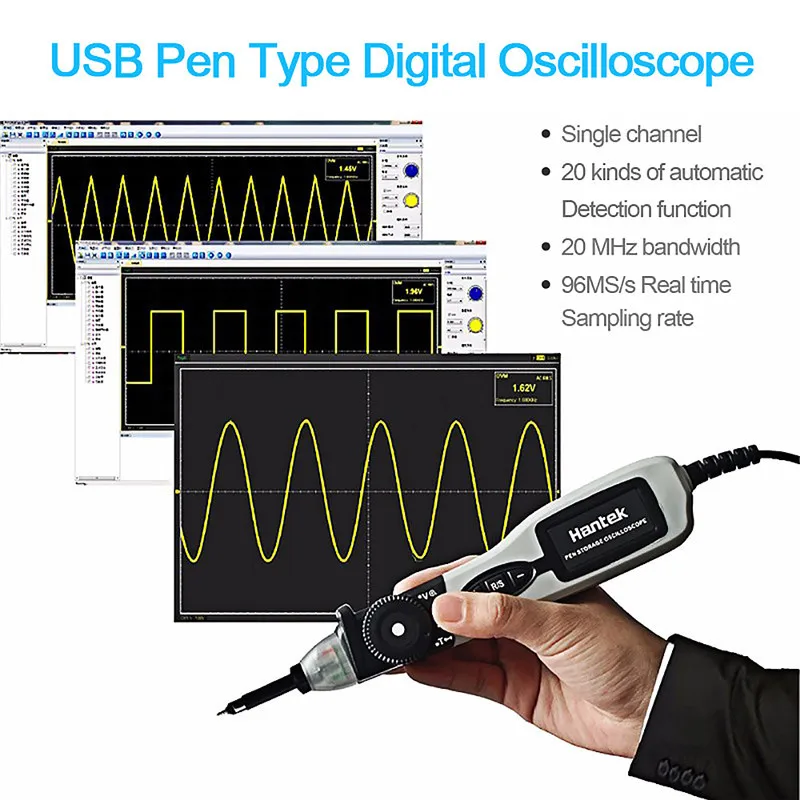

As a plug and play device with automatically measurement function, it's powered by USB interface and easy and convenient in operation. You can change the voltage/time division gear with single hand, no need any operation by keyboard or mouse.
Why choose pso2020???
1.Plug and play device,Power by USB inferface.
2.Driver and software established quickly and easily,easy to handle PC Program.
Item specifics

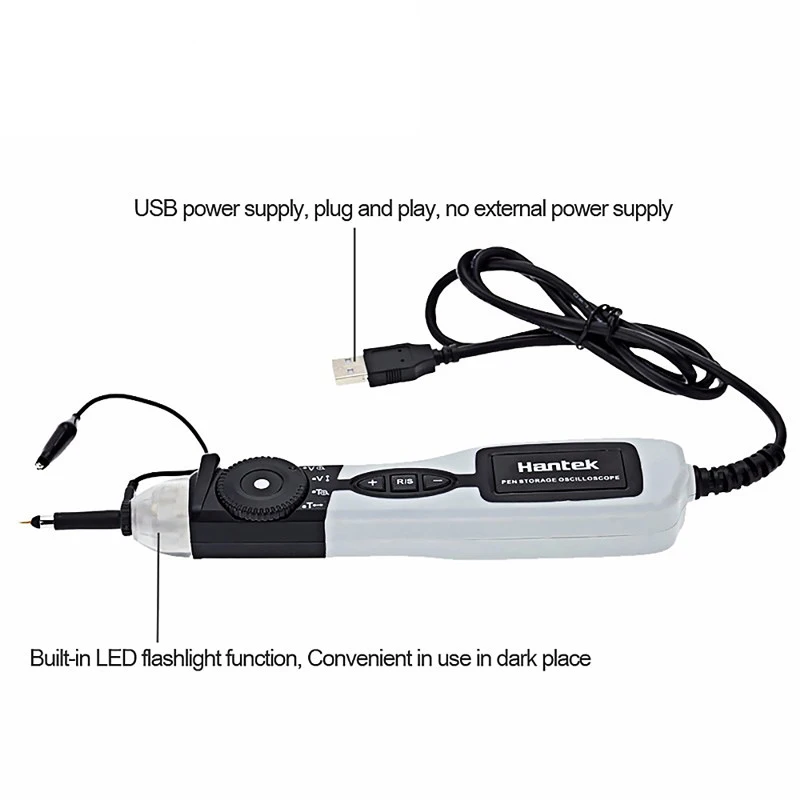

*Powered by USB interface, plug and play device; with automatically measurement function, easy for operation.

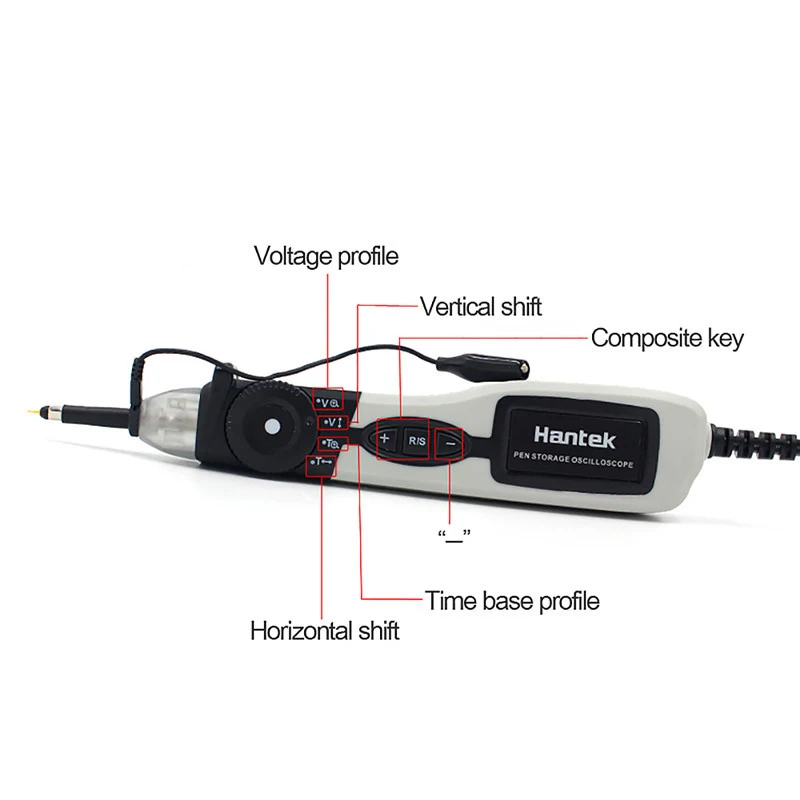

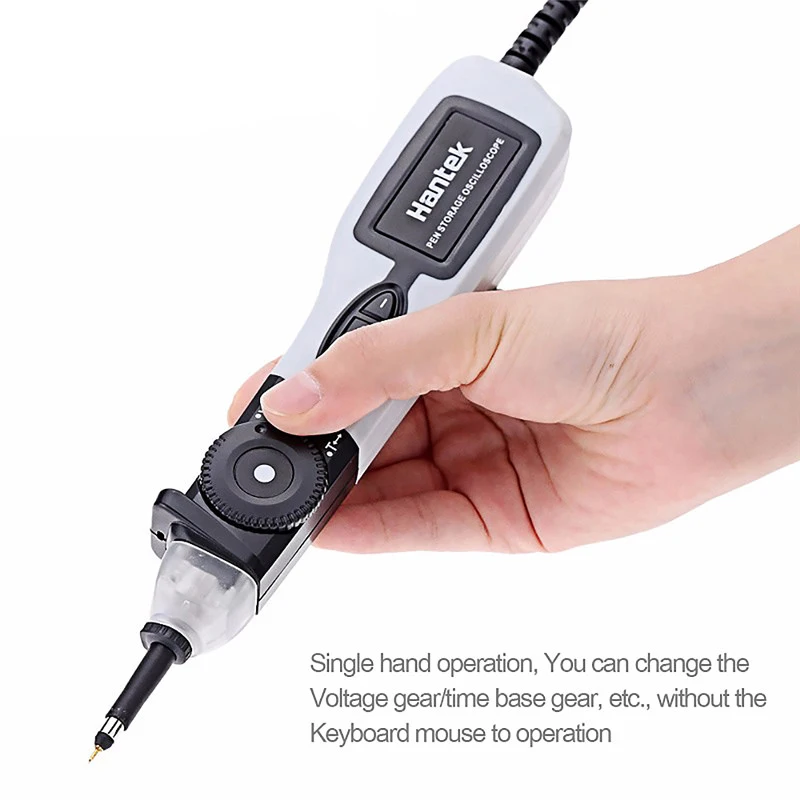

*Change the voltage/time division gear with single hand, no need to operate on the computer.
*Built-in LED light, providing better light for user's convenient operation in dark environment.
*Light weight and portable in design, suitable for use.
*DVM(digital voltmeter)function, real-time display the voltage measurement results.
*20MHz bandwidth, meet the requirements of measurement.
*Different kinds of language available, 20 types of auto measurement functions, pass/fail function.
*Operating system:Windows NT,Windows2000/XP, WIN7/8.
*Possible to connect to laptop directly, high cost performance.
Product Description
- Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.
- USB 2.0 interface plug and play, and no need extra power supply.
- Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
- Good mechanical design with small size which is easy for carrying. The outer case is made by Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
- 4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth.
- The waveform data could be output to EXCEL,BMP,JPG.
- Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
- FFT spectrum analyzer.
- One computer could connect with multiple oscilloscopes, expand the channel number easily.
- Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples.
Specifications:
- Vertical
- Channel: 1
- Bandwidth: 20MHz
- Input Impedence: 1MΩ
- Input Sensitivity: 20mV/div to 50V/div
- Input Coupling: DC/AC/GND
- Vertical Accuracy: ±3%
- Resolution: 8 bits
- Memory Depth:Maximum 1M/CH
- Max. Measurement Voltage: ±50V (Without any attenuation)
- Input Protection: 100V (DC+AC Peak)
- Horizontal
- Max. Sample Rate: 96MSa/s
- Time Base Range: 1ns/div to 5000s/div (Step by 1-2-5)
- Trigger
- Trigger Source: CH1
- Trigger Type: Edge Trigger
- Cursor and Measurement
- Voltage Measurement: Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot,
- Time Measurement: Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
- Cursors Measurement: Cross, Trace, Horizontal, Vertical
- Math: +,- , x,÷, FFT
- Voltage Range: 20mV to 20V/div @ x 1 probe
- Others
- FFT: Rectangular, Hanning, Hamming, Blackman
- Auto Set: Yes
- Interface: USB 2.0
- Power Supply: USB Power Supply
- Dimensions: 230 * 40 * 20mm / 9.05 * 1.57 * 0.8in
- Weight: 135g / 4.76oz
- Package Size: 30 * 12 * 3.5cm / 11.8 * 4.72 * 1.4in (L * W * H)
- Package Weight: 263g / 9.29oz

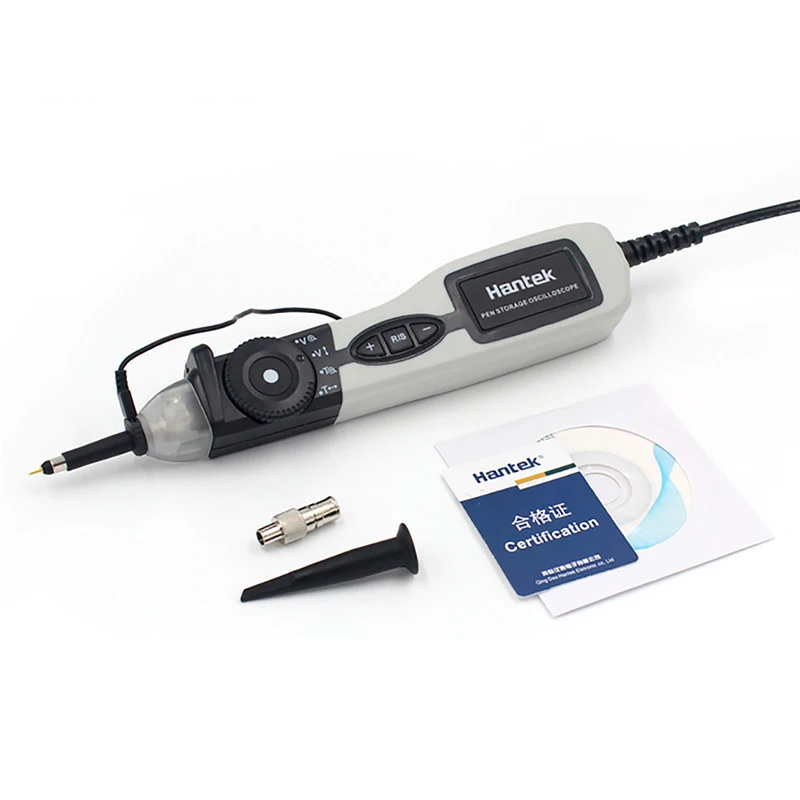

Package including:
- 1 * PSO 2020 Pen Oscilloscope
- 1 * CD
Unit Type:
piece
Package Weight:
0.3kg (0.66lb.)
Package Size:
17cm x 15cm x 20cm (6.69in x 5.91in x 7.87in)
