Brand Name:
UNI-T
DIY Supplies:
Electrical
Display Type:
Digital Display
Measuring Inductance Range:
Normal
Operating Temperature:
0 - 40 ℃
Dimensions:
272mm * 85mm * 31mm
Model Number:
UT18A/B/C/D
Measuring Resistance Range:
0~100ohm
Measuring Capacitance Range:
Electrical
Operating Mode:
A/M
Model number:
UT18A/B/C/D
 |  |  |
 |  |  |

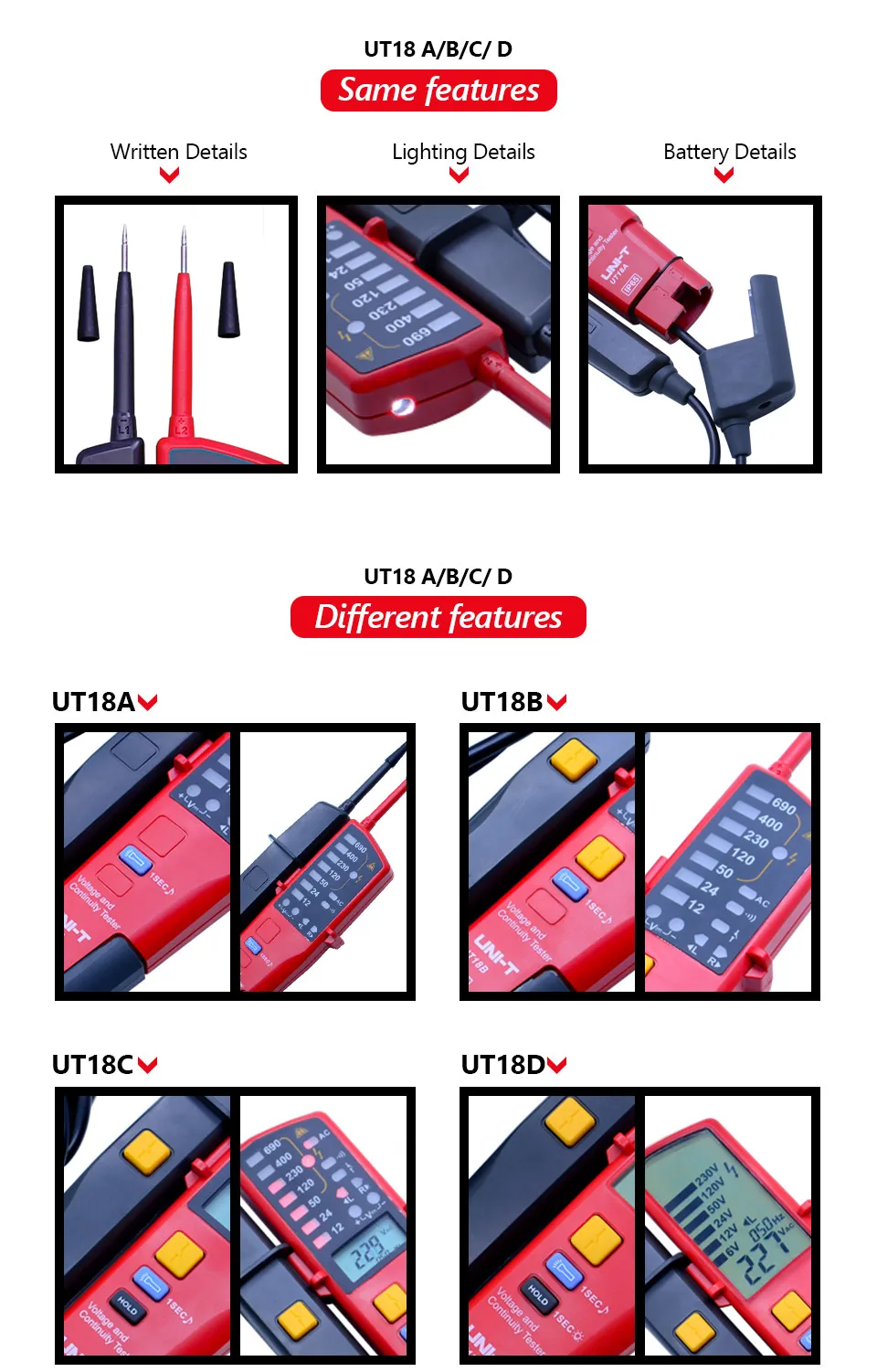

UNI-T UT18A UT18B UT18C UT18D Auto Range voltmeter Digital Voltmeter Voltage Tester Pen With LED Indication
Battery not included because of customs inspection!!!
Instruction:

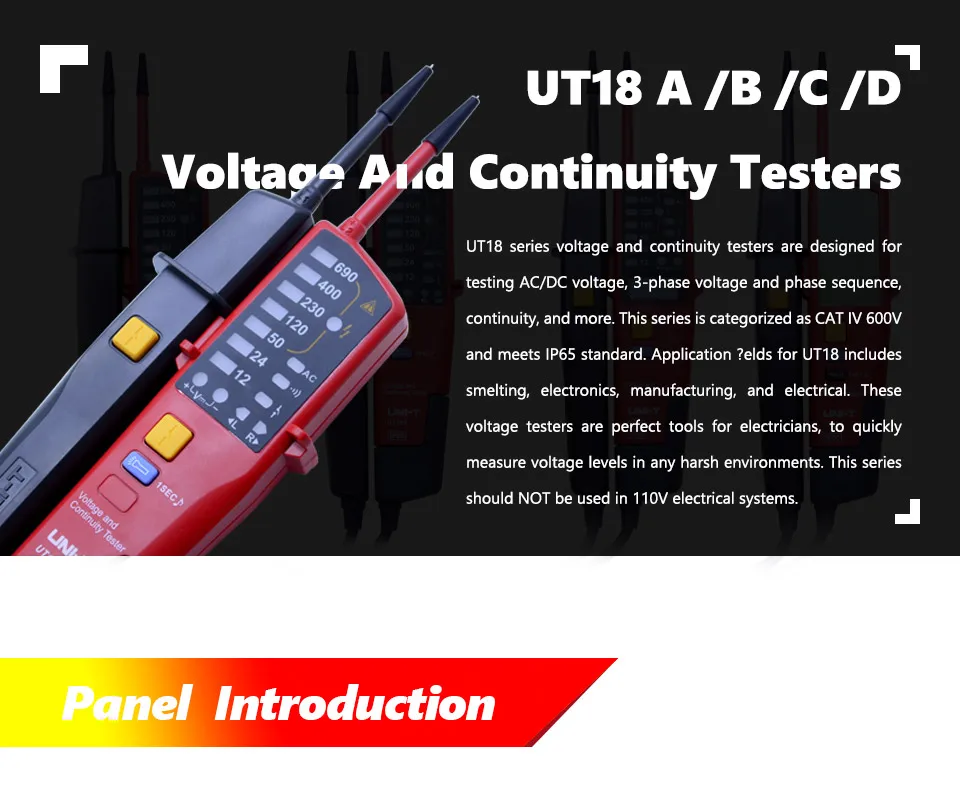

UT18 series of test pen with measuring AC and DC voltage (including the three-phase alternating current) measurement, phase of three-phase AC power indicator, on-off test, RCD test, single pen measurement (can determine the zero line or wire), self checking, no battery detection and other functions.
Suitable for: smelting, electronics, manufacturing, defense, electric power, petroleum, chemical industry. Also used to solve complex problems of electronic, factory automation, power distribution and electrical equipment in.
Features:
1. Auto power off, the conductor to be measured is greater than 12V
2. Phase rotation test
3. Continuity test with buzzer and LED indication
4. RCD: Detecting leakage protective switch
5. Low battery Indication and over voltage prompt
6. LED prompt
7. Flashlight
8. Test live voltage without batteries
9. Buzzer and silent mode
10. Auto range/Inspection
11. Polarity indication
Specifications:
| Specifications | Range | Best Accuracy | |||
| Model | UT18A | UT18B | UT18C | UT18D | |
| LED AC/DC Voltage Indication (V) | 12V | 8V±2V | 8V±2V | 8V±2V | 8V±2V |
| 24V | 18V±2V | 18V±2V | 18V±2V | 18V±2V | |
| 50V | 38V±4V | 38V±4V | 38V±4V | 38V±4V | |
| 120V | 92V±6V | 92V±6V | 92V±6V | 92V±6V | |
| 230V | 174V±8V | 174V±8V | 174V±8V | 174V±8V | |
| 400V | 320V±10V | 320V±10V | 320V±10V | 320V±10V | |
| 690V | 550V±15V | 550V±15V | 550V±15V | 550V±15V | |
| Phase Rotation Test | Operating Voltage: 100V~690V | √ | √ | √ | √ |
| Frequency: 50Hz~ 60Hz | |||||
| Single Lead (L2) Voltage Detection | Operating Voltage: 100V~690V | √ | √ | √ | √ |
| Frequency: 50Hz~400Hz | |||||
| Continuity Test | Resistance: 0~100kΩ | √ | √ | √ | √ |
| Beeper and LED light Indicator | |||||
| RCD Test | Operating Voltage: 230V (50Hz~400Hz) | √ | √ | √ | |
| Polarity Detection | Positive & Negative | √ | √ | √ | √ |
| self-inspection | All LED or LCD Indicator | √ | √ | √ | √ |
| No Power Test | Operating Voltage: 50VAC/120VDC~690VDC/AC | √ | √ | √ | |

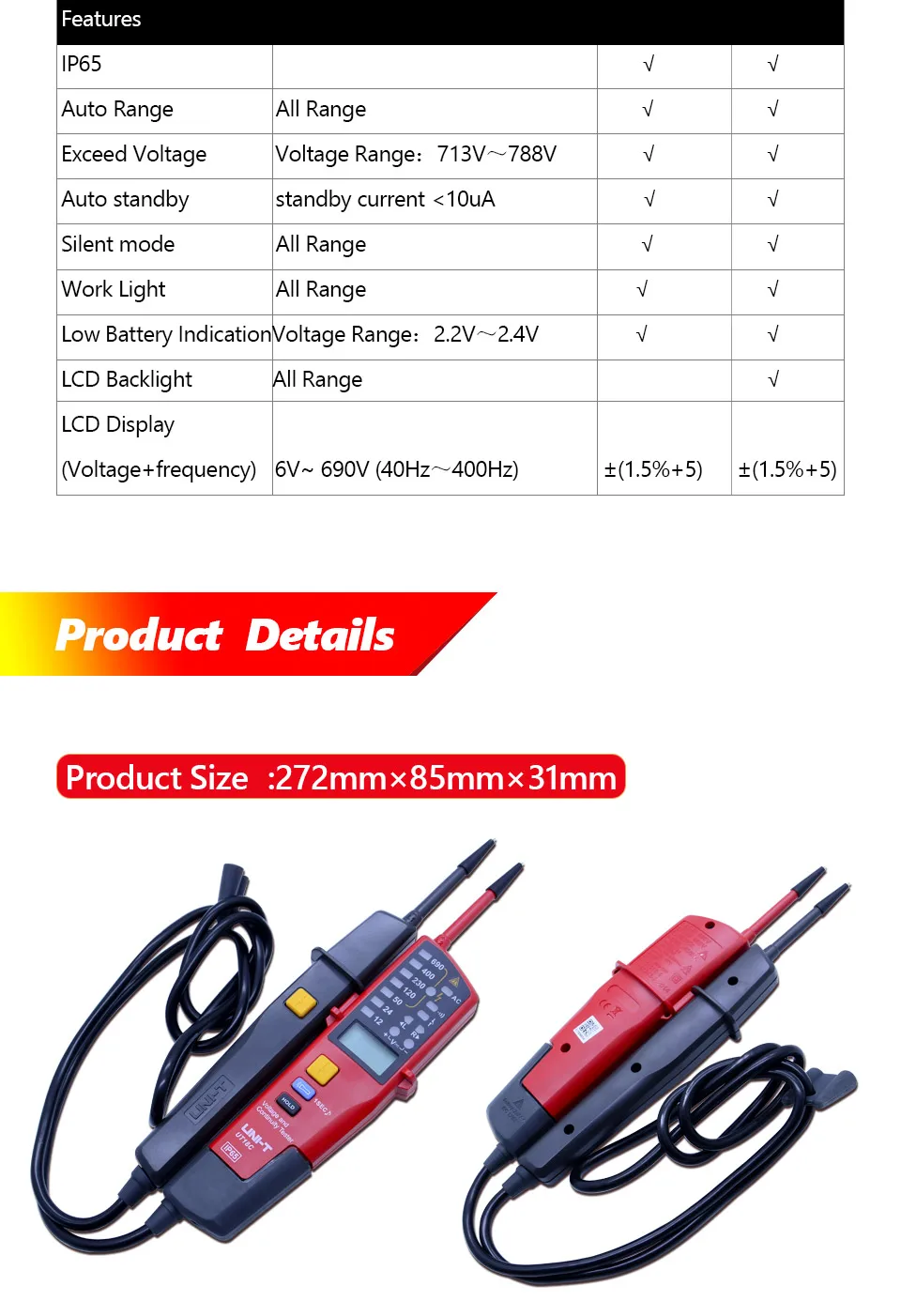

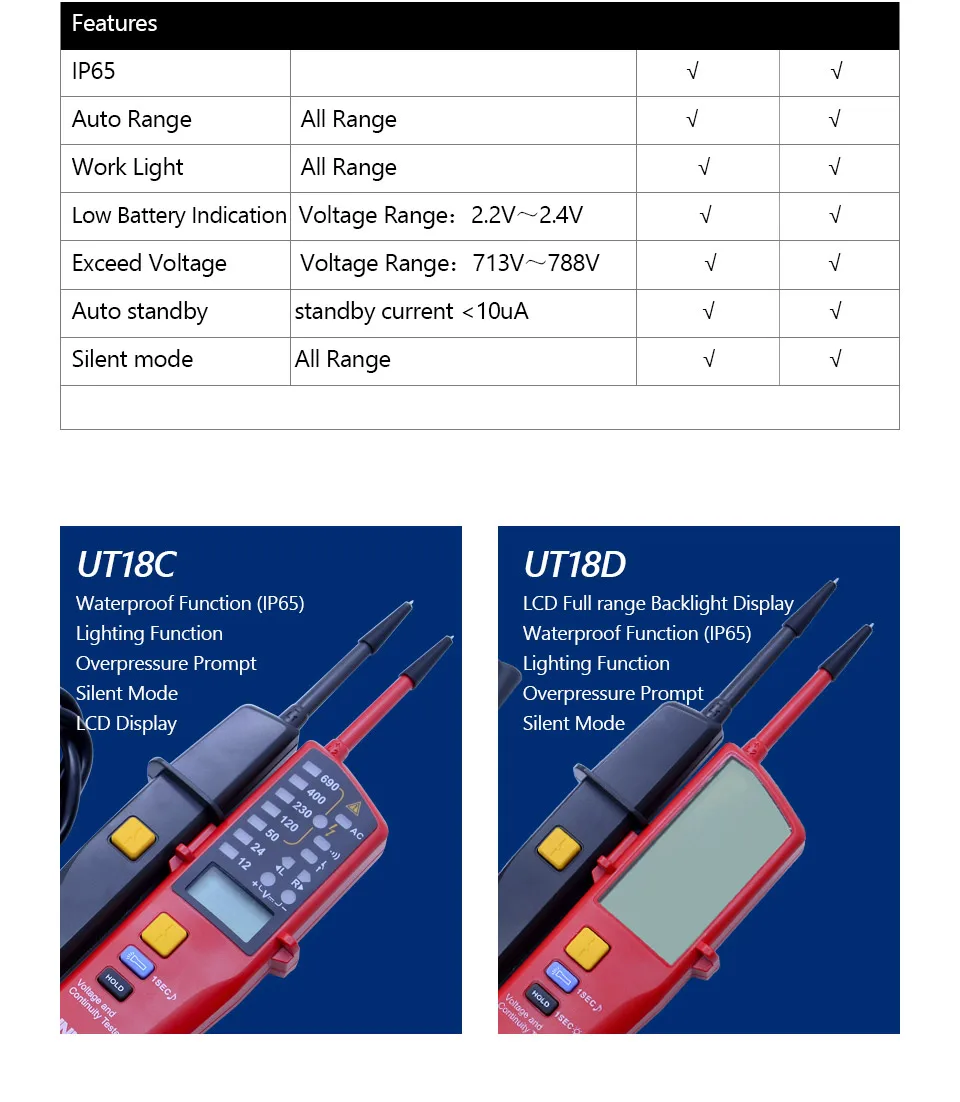

| Features | |||||
| IP65 | √ | √ | √ | √ | |
| Auto Range | All Range | √ | √ | √ | √ |
| Work Light | All Range | √ | √ | √ | √ |
| Low Battery Indication | Voltage Range: 2.2V~2.4V | √ | √ | √ | √ |
| Exceed Voltage | Voltage Range: 713V~788V | √ | √ | √ | √ |
| Auto Standby | Standby Current <10uA | √ | √ | √ | √ |
| Silent Mode | All Range | √ | √ | √ | √ |
| LCD Backlight | All Range | × | × | √ | |
| LCD Display (Voltage+Frequency) | 6V~690V (40Hz~400Hz) | × | × | ±(1.5%+5) | ±(1.5%+5) |
Please Note:
Packiing list:
1* Voltage continutity tester
1*English user manual
1*Blister box
Unit Type:
piece
Package Weight:
0.45kg (0.99lb.)
Package Size:
36cm x 18cm x 5cm (14.17in x 7.09in x 1.97in)
