Measuring Resistance Range:
600/6k /60k /600k /6M /60M
Brand Name:
ANENG
Operating Mode:
Double integral A/D converter
Model Number:
6 model
Measuring Inductance Range:
No
Measuring Capacitance Range:
10nF/100nF/1uF/10uF/100uF/1000uF/10000uF
Operating Temperature:
0 - 50 ℃
Dimensions:
65x130x32 mm
Display Type:
Digital Display
DIY Supplies:
Electrical
temperature test:
-20~1000 C (-4~1832 F)
is-customized:
YES
dc millivolt (true rms):
600mV
frequency:
1Hz to 10MHz
diode test:
Yes
size:
an8000 an8001 an8002 an8004 an8008 an8009
Measuring Voltage Range:
600mV/6V/60V/600V/1000V
Measuring Current Range:
600uA/6000uA/60mA/600mA/10A

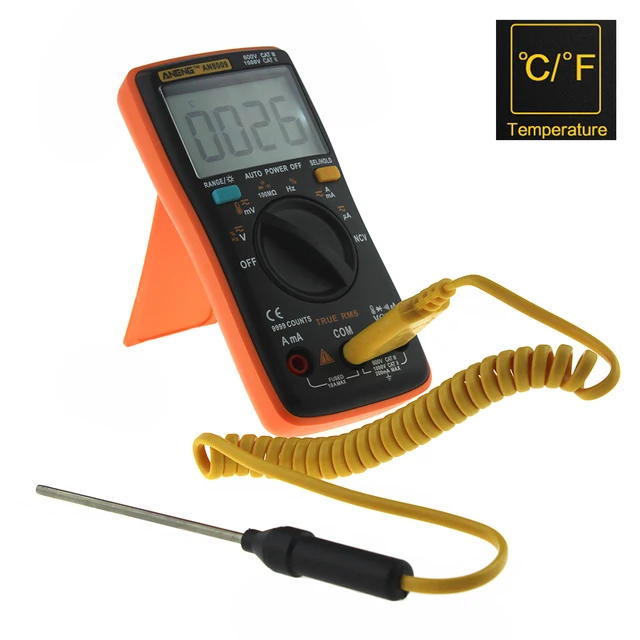

ANENG Portable LCD Digital Multimeter AC/DC Ammeter Voltmeter Ohm Meter Wire Pen AN8000 AN8001 AN8002 AN8004 AN8008 AN8009
AN8001 PORTABLE AUTORANGING DIGITAL MULTIMETER
Features：
Auto ranges
True RMS
550V protection in Resistance、Capacitance and Frequency ranges
Large LCD display，MAX display 6000 counts
Sample rate: 3 times per second
backlight
Data hold
Polarity identification
Low voltage indication
10A high current and low current measurement
Auto power off
Main measurements：AC/DC Voltage, AC/DC Current, Resistance，Capacitance，
Diode and Continuity Testing，Frequency and duty cycle.
* Frequency：1Hz to 10MHz
* Capacitance :10pF to 6000uF
* AC volts: 0.1mV to 750V
* DC volts：0.1mV to 1000V
* AC current：0.1uA to 10A
* DC current：0.1uA to 10A
* Resistance ：0.1Ω to 60MΩ
* Duty cycle：1% to 99%
Specifications：
(1)Capacitance :10nF（±5.0+20）,100nF/1uF/10uF/100uF（±2.0%+5），1000uF/10000uF（±5.0%+5）
(2)DC volts：600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)
(3)AC volts: 600mV(±3.0%+3)，6V/60V/600V/750V(±1.0%+3）
(4)DC current：600uA/6000uA(±1.5%+3),60mA/600mA(±1.5%+3)，10A(±1.5%+3)
(5)AC current：600uA/6000uA(±1.5%+3),60mA/600mA(±1.5%+3)，10A(±1.5%+3)
(6)Resistance ：600Ω(±0.5%+3),6K/60K/600K/6M(±0.5%+2),60MΩ(±1.5%+3)
(7)Frequency：5/50/500/5k/50k/500k/5M/10M (±0.1+3)
(9)Duty cycle：1% to 99%(±1%)
(10) Measurement mode: Double-integral style A/D transform
(11)Over range indication: OL
(12) Working environment: 0~40℃, relative humidity < 80%
(13) Supply power: 3V (1.5V AAA batteries * 2 Pcs)
(14) Dimension: 130*65*30mm
(15) Weight: 130g
(16) Accessories: User’s manual,a pair of test leads, a bag, and two 1.5V batteries.
AN8002 PORTABLE AUTORANGING DIGITAL MULTIMETER
Features：
Auto ranges
True RMS
550V protection in Resistance、Capacitance and Frequency ranges
Large LCD display，MAX display 6000 counts
Sample rate: 3 times per second
backlight
Data hold
Polarity identification
Low voltage indication
10A high current and low current measurement
Auto power off
Main measurements：AC/DC Voltage, AC/DC Current, Resistance，Capacitance，
Diode and Continuity Testing，Temperature, Frequency and duty cycle.
* Frequency：1Hz to 10MHz
* Temperature：-20℃ to 1000℃（-4℉ to 1832℉）
* Capacitance :10pF to 6000uF
* AC volts: 0.1mV to 750V
* DC volts：0.1mV to 1000V
* AC current：0.1uA to 10A
* DC current：0.1uA to 10A
* Resistance ：0.1Ω to 60MΩ
* Duty cycle：1% to 99%
Specifications：
(1)Capacitance :10nF（±5.0+20）,100nF/1uF/10uF/100uF（±2.0%+5），1000uF/10000uF（±5.0%+5）
(2)DC volts：600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)
(3)AC volts: 600mV(±3.0%+3)，6V/60V/600V/750V(±1.0%+3）
(4)DC current：600uA/6000uA(±1.5%+3),60mA/600mA(±1.5%+3)，10A(±1.5%+3)
(5)AC current：600uA/6000uA(±1.5%+3),60mA/600mA(±1.5%+3)，10A(±1.5%+3)
(6)Resistance ：600Ω(±0.5%+3),6K/60K/600K/6M(±0.5%+2),60MΩ(±1.5%+3)
(7)Temperature：﹤400℃ ±（1.0%+5），≥400℃±（1.5%+15）
﹤752℉ ±（1.0%+5），≥752℉±（1.5%+15）
(8)Frequency：5/50/500/5k/50k/500k/5M/10M (±0.1+3)
(9)Duty cycle：1% to 99%(±1%)
(10) Measurement mode: Double-integral style A/D transform
(11)Over range indication: OL
(12) Working environment: 0~40℃, relative humidity < 80%
(13) Supply power: 3V (1.5V AAA batteries * 2 Pcs)
(14) Dimension: 130*65*30mm
(15) Weight: 130g
(16) Accessories: User’s manual,a pair of test leads, a TP01K thermocouple, a bag, and two 1.5V batteries.
AN8004 PORTABLE AUTORANGING DIGITAL MULTIMETER
Features：
Auto ranges
550V protection in Resistance、Capacitance and Frequency ranges
Large LCD display，MAX display 2000 counts
Sample rate: 3 times per second
Backlight
Polarity identification
Low voltage indication
current measurement
Auto power off
Main measurements：AC/DC Voltage, AC/DC Current, Resistance, Diode and Continuity Testing
* AC volts: 0.1mV to 750V
* DC volts：0.1mV to 1000V
* AC current：0.1uA to 200mA
* DC current：0.1uA to 200mA
* Resistance ：0.1Ω to 20MΩ
Specifications：
(1)DC volts：200mV/2V/20V(±0.8%+5),200V/800V(±1.0%+8)
(2)AC volts: 200mV(±1.5%+8)，2V/20V/200V(±1.2%+5),600V(±1.5%+5）
(3)DC current：20mA(±1.5%+5),200mA(±1.2%+5)
(4)AC current：20mA(±2.0%+5),200mA(±1.5%+5)
(5)Resistance ：200Ω(±2.5%+5),2K/20K/200K/2M(±1.0%+5),20MΩ(±2.5%+5)
(6)Over range indication: OL
(7) Working environment: 0~40℃, relative humidity < 80%
(8) Supply power: 3V (1.5V AAA batteries * 2 Pcs)
(9) Dimension: 130*65*30mm
(10) Weight: 130g
(11) Accessories: User’s manual,a pair of test leadsand two 1.5V batteries.
AN8008 PORTABLE AUTORANGING DIGITAL MULTIMETER
Specifications:
(1)Capacitance: 9.999nF(±5.0%+20),99.99nF/999.9uF/9.999uF/99.99uF/999.9uF(±2.0%+5), 9.999mF(±5.0%+5)
(2)DC volts: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V(±0.5%+3)
(3)AC volts: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V(±1.0%+3)
(4)DC current: 99.99uA/999.9uA(±0.8%+3),999.9mA/9.999A(±1.0%+3)
(5)AC current: 99.99uA/999.9uA(±1.0%+3),999.9mA/9.999A(±1.2%+3)
(6)Resistance: 99.99Ω(±1.0%+3),999.9/9.999K/99.99K/999.9K(±0.5%+3),9.999MΩ(±1.5%+3)
(7)Frequency: 99.99/999.9/9.999k/99.99k/999.9k/9.999M (±0.1+2)
(9)Duty cycle: 1% to 99%(±0.1%+2)
(10) Measurement mode: Double-integral style A/D transform
(11)Over range indication: OL
(12) Working environment: 0~40℃, relative humidity < 80%
(13) Supply power: 3V (1.5V AAA batteries x 2) (Not included)
(14) Dimension: approx. 132 x 65 x 30 mm
(15) Net Weight: approx. 113g
AN8009 PORTABLE AUTORANGING DIGITAL MULTIMETER
Frequency: 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz
Square Wave Output: 50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/ 900Hz/1000Hz/200
DC/AC Voltage(mV): 9.999mV/99.99mV
DC/AC Voltage(V): 999.9mV/9.999V/99.99V/750ACV(999.9DCV)
DC/AC Current (mA&A): 999.9mA/9.999A
DC/AC Current (uA): 99.99μA/999.9μA
Display Type: Digital Display
Diode Test: Yes
Continuity: Yes
Duty Cycle: 1%-99%
Sample Rate: 3 times per second
Power: 2 * 1.5V AAA batteries(Not Included)
Package included:
1 x Multimeter
1 x Test lead+temperature sensor
1 x User Manual
1 x Storage bag
1 x 16pc Test probe
Unit Type:
piece
Package Weight:
0.42kg (0.93lb.)
Package Size:
18cm x 12cm x 8cm (7.09in x 4.72in x 3.15in)
