Best Offers - BTMETER BT-38C Pen digital multimeter multi-function digital voltmeter digital display portable resistance capacitance meter Excellent
Best - BTMETER BT-38C Pen digital multimeter multi-function digital voltmeter digital display portable resistance capacitance meter Best Offers
Brand Name:
ACEHE
DIY Supplies:
Electrical
Display Type:
Digital Display
Measuring Inductance Range:
/
Operating Temperature:
0 - 40 ℃
Dimensions:
25 * 7.5 * 2.5 / 9.8 * 3 * 1in
Model Number:
YB83400
Measuring Resistance Range:
/
Measuring Capacitance Range:
/
Operating Mode:
/
AC Voltage:
600mV / 6V / 60V / 600V
DC Voltage:
600mV / 6V / 60V / 600V / 600V
AC Current:
/
DC Current:
/
 |  |  |
 |  |  |
 | ||
Features:

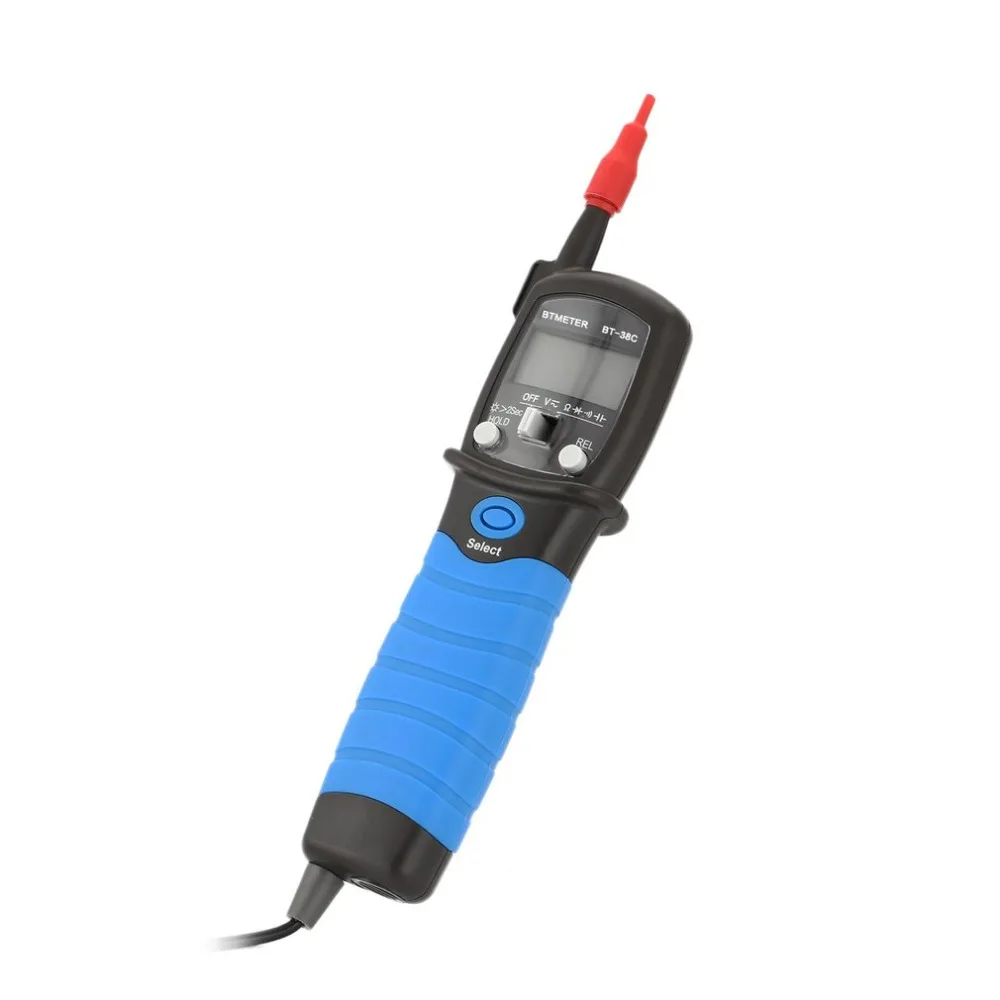

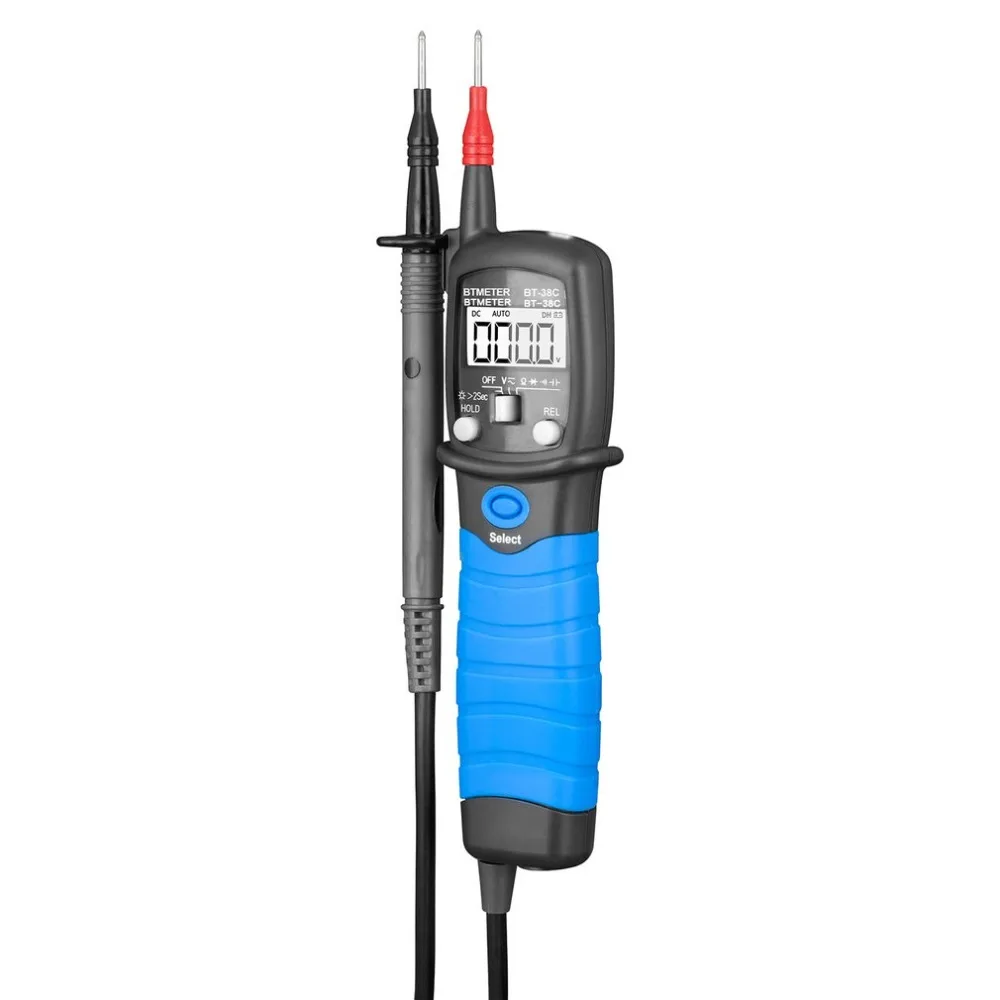

Portable pen type multimeter, used to test DC & AC voltage, resistance,Capacitance, positive diode voltage fall and audible continuity.
6000 counts digit LCD monitor with character 12mm high offers clear readings.
Use the toggle switch to select functions and ranges.
Other 3 keys to lock display value, turn on/off backlight, choose resistance, diode or continuity test, change units(DC or AC).
With auto range control function, over-range indication and low battery indication.
Auto Power Off: it will switch to standby mode automatically after 15mins if there's no operation.
The anti-slip cover with test probe slots can protect multimeter and organize probes as well.
Test Features-Accuracy was determined for one year after calibration with 70% relative humidity between 18 ° C and 28 ° C (64 ° F and 82 ° F)
Specifications:
Material: plastic
Display: LCD display with backlight
Power Supply: 2 * 1.5V AAA RO3P batteries (not included)
DC Voltage Range: 600mV/6V/60V/600V/600V
DC Voltage Resolution: 0.1mV/1mV/10mV/100mV/1V
AC Voltage Range: 600mV/6V/60V/600V
AC Voltage Resolution: 1mV/10mV/100mV/1V
Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Resistance Resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ
Capacitance: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
Fuse Protection: replaceable fuse
Operating Temperature: 0~40°C (relative humidity<85%)
Storage Temperature: -10~50°C (relative humidity<85%)
Warranty Accuracy Temperature: 23 ± 5 ° C (Relative Humidity <70%)
Screen Size: 3.5 * 1.5 / 1.4 * 0.6in

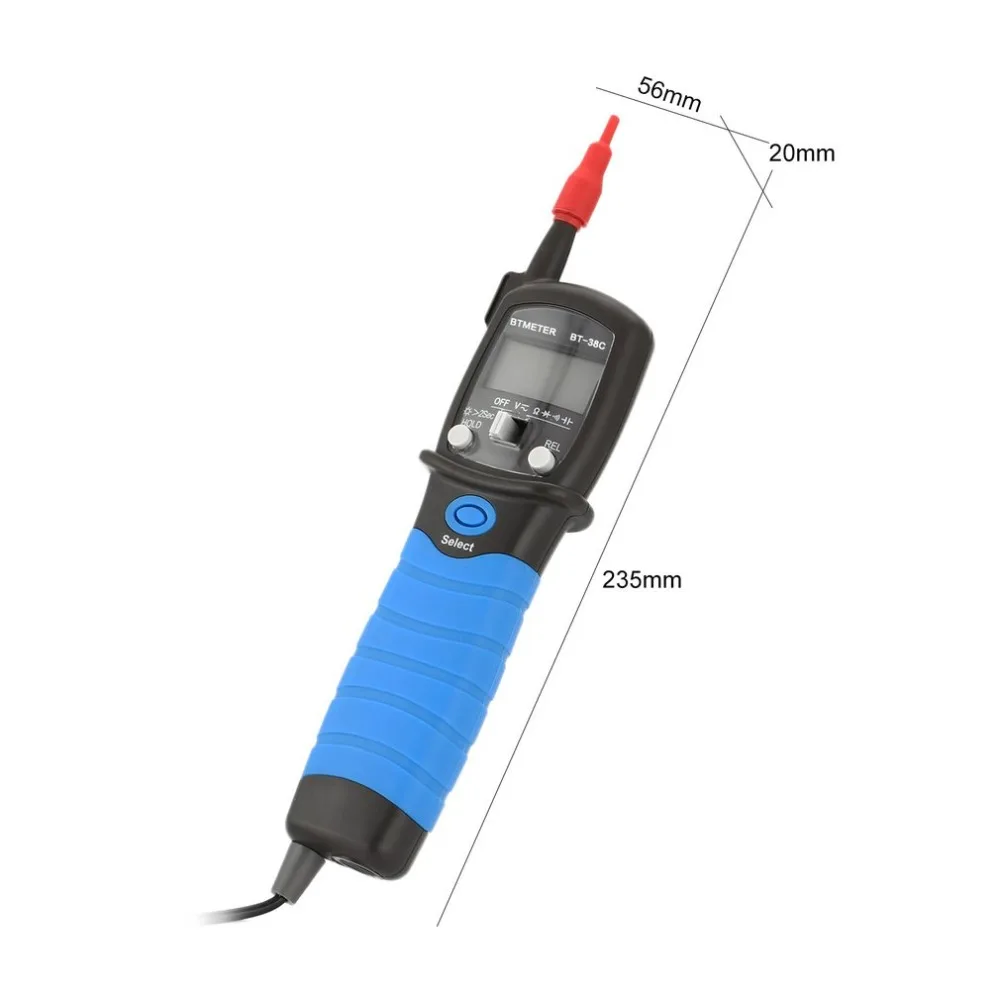

Item Size: 25 * 7.5 * 2.5 / 9.8 * 3 * 1in
Item Weight: 200g

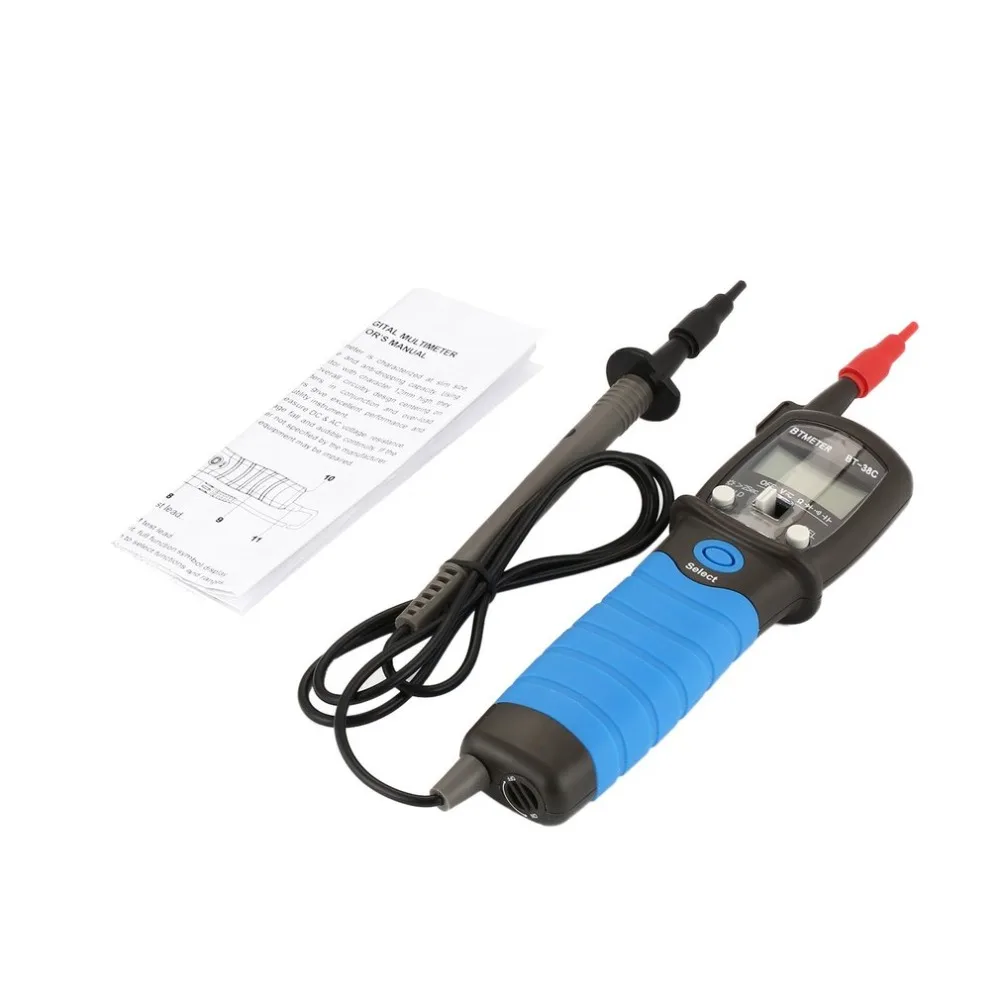

Package List:
1 * Digital Multimeter
1 * User Manual(English)
150mm*210mm*115mm
 | |||
 |  |  |  |
 |  |  |  |
Unit Type:
piece
Package Weight:
0.23kg (0.51lb.)
Package Size:
5cm x 11cm x 5cm (1.97in x 4.33in x 1.97in)
